Agility-led geometry concept
Final engineering specification and production configuration to be confirmed.
The intent
Agile Technical Riding
For riders who value exact lines and immediate response.
A compact, precision-led concept for tight sections, fast transitions and technical trail work.
Form in motion
Built to be seen moving.

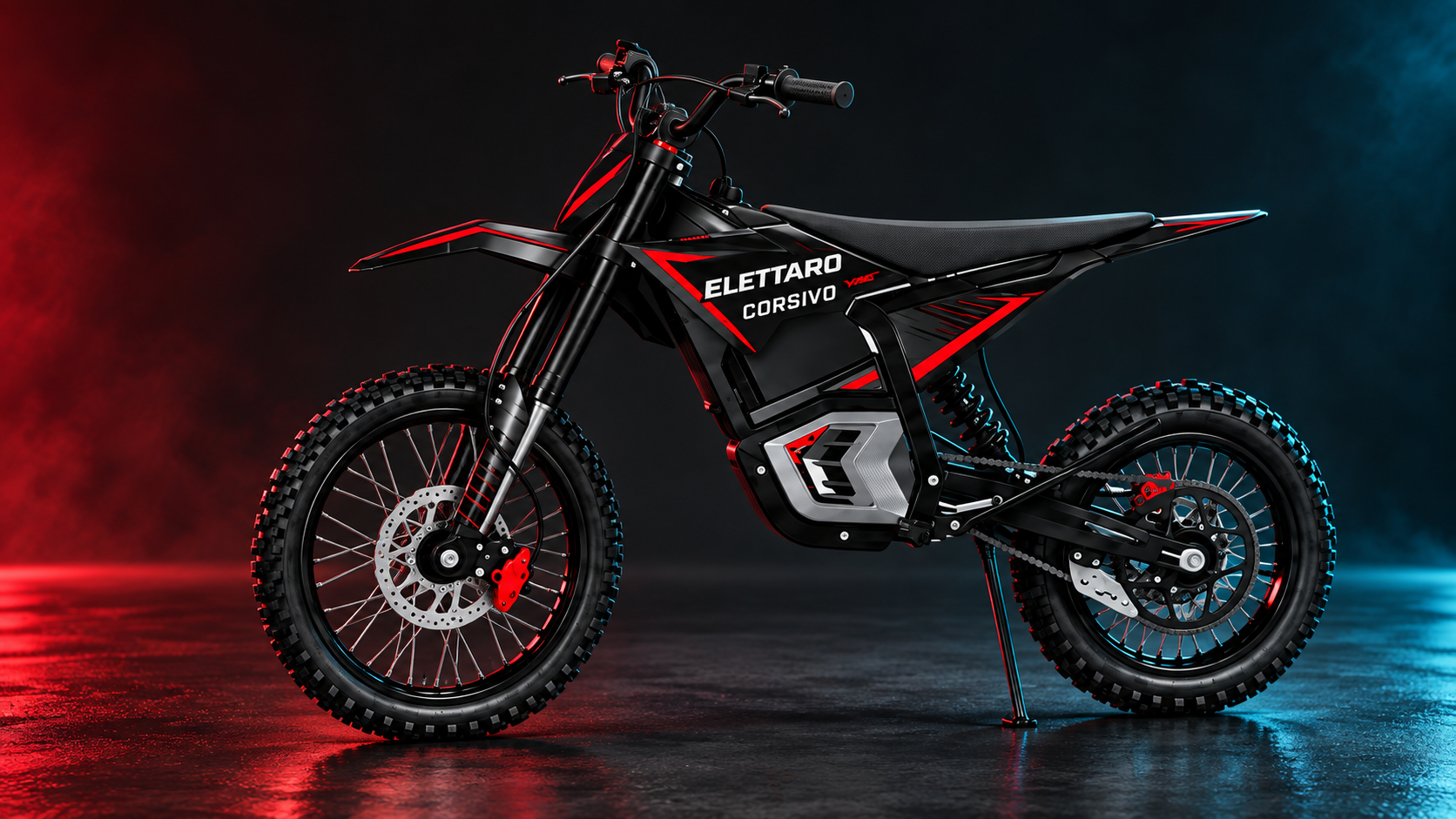

Explore the CORSIVO profile, proportions and electric off-road design.
02
Precision details
03
Off-road character
Ride character
Designed around the rider.
Progressive electric response
Final engineering specification and production configuration to be confirmed.
Technical-riding control focus
Final engineering specification and production configuration to be confirmed.
Engineering program
CORSIVO DEVELOPMENT TARGETS
Proposed engineering targets. Final production specifications are subject to validation and may change.
Performance targets
- Peak power
- 9.5 kW
- Rated / continuous power
- 5 kW
- Rear-wheel torque
- 330 N·m; measurement method to be validated
- Top speed
- 92 km/h / 57 mph
- Acceleration
- 0–50 km/h in 2.6 seconds or less
- Controller
- 160A peak FOC controller
Energy & charging targets
- Battery
- 74V 32Ah smart removable / swappable pack
- Battery energy
- 2.37 kWh
- Cells
- Automotive-grade 21700 cells; supplier to be confirmed
- Maximum range
- Up to 110 km at 35 km/h under controlled conditions
- Real-trail range
- 60–80 km, depending on conditions
- Charger
- 1.8 kW smart charger
- 20–80% charge time
- Approximately 45 minutes
- 0–100% charge time
- Approximately 1.8 hours
Agility & control targets
- Frame
- Reinforced 6061-T6 aluminum
- Curb weight
- 52 kg or less
- Wheels
- 18-inch front / 16-inch rear
- Brakes
- Four-piston hydraulic; 220 mm front / 203 mm rear rotors
- Front suspension
- Fully adjustable inverted fork, 190 mm travel
- Rear suspension
- Adjustable piggyback shock, 180 mm travel
- Regenerative braking
- Adjustable
- Traction control
- Switchable
- Ride modes
- Eco, Trail, Sport, Boost, and Custom
- Low-speed control
- Reverse assist and hill hold
Protection & tuning targets
- App tuning
- Tunable throttle response and regenerative braking
- Protection
- Complete bike IP66; battery / controller IP67
Interface, security & warranty targets
- Display
- 4-inch color TFT with automatic day / night mode
- Connected controls
- Bluetooth app, GPS, OTA, ride data, diagnostics, and service reminders
- Access & security
- NFC key, PIN fallback, GPS tracking, geofence, and motion alarm
- Warranty
- 2 years motorcycle / 3 years battery
Published baseline
CORSIVO Target vs. Strike Shadow SV2 Z7 Published Specification
A transparent comparison between CORSIVO’s proposed engineering targets and the current official Jersey E-Bikes Strike Shadow 72V SV2 / Z7 listing.
| Measure | CORSIVO target | Strike Shadow published specification |
|---|---|---|
| Peak power | 9.5 kW target36% more target peak power | 7,000W brushless motor |
| Rated / continuous power | 5 kW target | Not published on cited official page |
| Power-to-weight | Approximately 183 W/kg target at 9.5 kW / 52 kgAbout 66% higher target power-to-weight | Approximately 110 W/kg calculated at 7 kW / 63.5 kg |
| Rear-wheel torque | 330 N·m target; measurement method to be validatedNo direct torque advantage claimed | Not published on cited official page |
| Top speed | 92 km/h / 57 mph targetAbout 4% higher target top speed versus 55 mph | 55+ mph, rider dependent; specification line also states 55 mph |
| Acceleration | 0–50 km/h in 2.6 seconds or less target | Not published on cited official page |
| Battery | 74V 32Ah smart removable / swappable pack | Removable 72V 25Ah lithium-ion battery |
| Battery energy | 2.37 kWh targetAbout 32% more target battery energy | 1.80 kWh calculated |
| Range | Up to 110 km at 35 km/h controlled; 60–80 km real-trail targetNo direct range advantage claimed | Not published on cited official page |
| Controller | 160A peak FOC controller target | 72V performance controller; amperage not published |
| Charger | 1.8 kW smart charger target | UL-certified 72V 6A smart charger |
| Charge time | Approximately 45 minutes, 20–80%; approximately 1.8 hours, 0–100% targetFaster proposed charging cannot be directly quantified against an unpublished duration | Not published on cited official page |
| Frame | Reinforced 6061-T6 aluminum targetAluminum target chassis instead of the published reinforced steel main frame | Reinforced steel main frame with aluminum swingarm |
| Curb weight | 52 kg / approximately 115 lb or less targetTarget approximately 11.5 kg / 25 lb lighter | Approximately 140 lb / 63.5 kg |
| Wheels | 18-inch front / 16-inch rear targetLarger target wheel set | 17-inch front / 14-inch rear |
| Brakes | Four-piston hydraulic; 220 mm front / 203 mm rear rotorsDetailed proposed braking hardware; corresponding competitor details not published | Front and rear hydraulic disc brakes; hardware size and piston count not published |
| Suspension | Fully adjustable inverted fork, 190 mm target travel; adjustable piggyback rear shock, 180 mm target travelDetailed proposed travel and adjustability; corresponding competitor details not published | Fastace hydraulic fork, 45×48×670 mm; Fastace hydraulic rear shock, 245 mm eye-to-eye |
| Rider controls | Five modes, adjustable regeneration, switchable traction control, reverse assist, and hill holdProposed advanced rider controls; competitor specifications not published | Not published on cited official page |
| Protection | Complete bike IP66; battery / controller IP67 targetProposed detailed ingress ratings; competitor ratings not published | Not published on cited official page |
| Display | 4-inch color TFT with automatic day / night mode | EM06 LCD with speed, voltage, ride mode, and trip data |
| Drivetrain | To be confirmed | Heavy-duty 420 chain |
| Ground clearance | To be confirmed | 11 inches |
| Seat height | To be confirmed | 32 inches |
| Stand-over height | To be confirmed | 30 inches |
| Handlebar width | To be confirmed | 28.34 inches |
| Maximum load | To be confirmed | 280 lb |
| Body colors | See current CORSIVO colorways | Red, black, and white |
| Connectivity | Bluetooth app, GPS, OTA, ride data, diagnostics, and service remindersProposed connected controls; competitor specifications not published | Not published on cited official page |
| App tuning | Tunable throttle response and regenerative brakingProposed app tuning; competitor specification not published | Not published on cited official page |
| Access & security | NFC key, PIN fallback, GPS tracking, geofence, and motion alarmProposed security set; competitor specifications not published | Not published on cited official page |
| Warranty | 2 years motorcycle / 3 years battery targetTarget warranty cannot be directly compared without a published competitor term | Not published on cited official page |
Strike Shadow figures reflect the cited official Jersey E-Bikes listing for the Strike Shadow 72V SV2 / Z7 by Throne Cycles. Published speed is rider dependent; measurement methods and test conditions are not fully defined. “Not published” means the specification is not stated on that cited page, not that the feature is absent. Source: Official Jersey E-Bikes Strike Shadow SV2 Z7 page.
Targeted advantage
Why it matters
Sharper power-to-weight
The 9.5 kW and 52 kg targets aim for approximately 183 W/kg, subject to validation.
More usable energy
A 2.37 kWh removable battery target supports longer sessions without making a direct range claim.
Agility-led chassis
A reinforced aluminum frame and larger 18 / 16 wheel target prioritize speed, precision, and control.
Advanced rider control
Five proposed modes, traction control, adjustable regeneration, reverse assist, and hill hold broaden setup options.
Defined hardware & protection
Detailed brake, suspension, and ingress targets set a clear engineering direction for demanding terrain.
Connected security
Planned GPS, NFC and PIN access, geofencing, motion alerts, diagnostics, and OTA updates extend control beyond the ride.
All CORSIVO figures and features shown above are proposed development targets, not validated production specifications, guarantees, production-ready claims, or an offer for sale.
